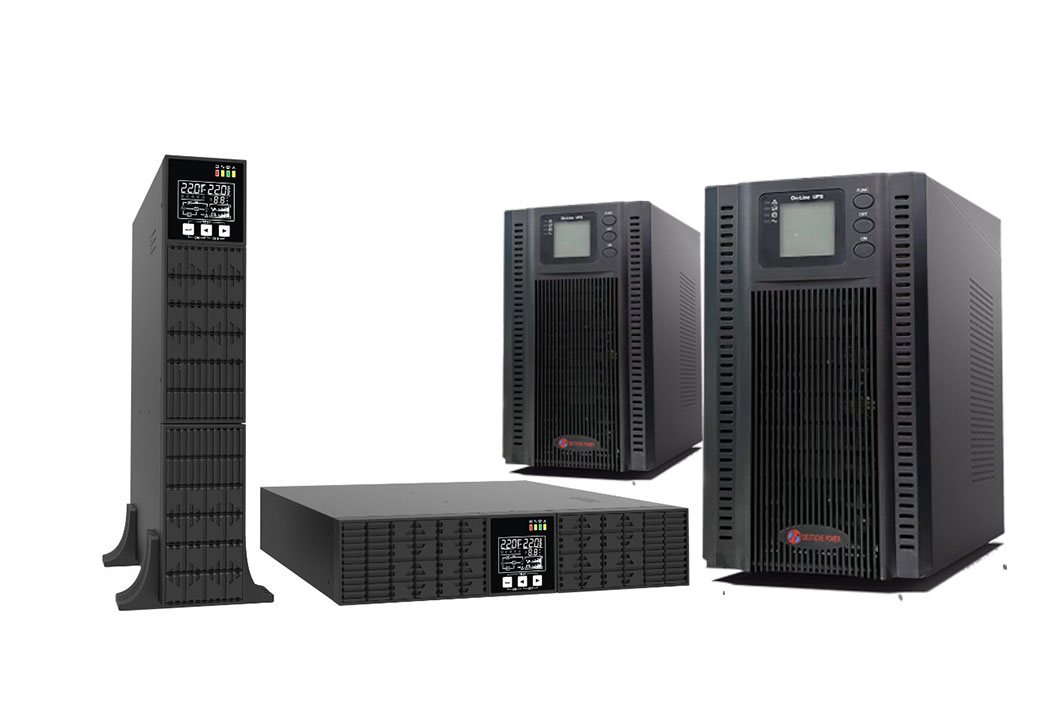

ELEKTRA SERIES
I.T GRADE ONLINE DOUBLE CONVERSION UPS
1KVA ~ 20KVA (1/1)
Mission Critical & IT Usage
This is a green product that comply with the products pollution control management measures, the product under normal use, will not harm the environment and personals using it.
Elektra Series H.F range of On Line Double Conversion UPS's uses microprocessor control technology intended in particular for users of critical systems that require reliability and high performance at the same time (telecommunications equipment, critical industrial applications, etc.).
Elektra uses technology which delivers a perfect sinusoidal output current and provides effective protection of critical devices.
Elektra Series UPS's provides an upgraded power factor reaching 0.8 for single phase systems, therefore offer higher performance and improved efficiency for vital applications. UPS status can be monitored at a glance on an intuitive LCD screen. Elektra Series offer redundant and capacity parallel UPSs, the right solution for all applications requiring a perfect and uninterrupted power supply.
Active Input Power Factor Correction (Pfc)
With digital control of active power factor correction technology, enables high input power factor 0.99 above as to avoid contamination of electrical network environment, saving energy and reducing system costs.
Compatible With Generators
Input voltage and frequency range is wide so can effectively works on generator sets and thus provide pure, safe and stable power.
Power Factor 0.9
Adapting the current most electrical devices type it enhances the ability for supporting load of the machine. 0.9 power factor.
Parallel Configuration
N+X is currently the most reliable power supply structure. N represents the minimum required UPS number that the total load needs; X represents the redundant UPS number. The bigger the X is, the higher reliability of the power system is. For occasions where reliability is highly required, N+X is the optimal mode up to 3 of them can be connected in parallel to support output power sharing and power redundancy.
DSP Digital Control Technology
DSP advanced digital control technology UPS, increases performance, stability, quality and reliability.
Zero Switching
The transfer time when UPS transferred to the battery or vice versa is zero, effectively guarantee the load operation security and reliability. DSP Digital Control Technology DSP advanced digital control technology UPS, increases performance, stability, quality and reliability.
Wide Input Voltage & Frequency Range
Very wide input voltage and frequency ranges, even in harsh electrical environments will work in stable mode,which reduces the number
Application
Elektra range provide a combination of outstanding protection features and flexibility, making it the right choice for applications demanding optimum reliability and energy efficiency.It systems such as servers, networking devices, workstations, storage systems and a long list of other IT equipment find the right protection element in Elektra, especially, when combined with Elektra powerful Connectivity suite.
VolP equipment, railway control systems, medical laboratory instrumentation, and many other industrial applications may also benefit from the consistent and high quality power provided by the Elektra, thanks to the robustness, precision and high efficiency provided.
Powerful Extensibility Features
Smart slot provides rich scalable features, USB can be selected, AS400 card, SNMP card, RS485 card and environmental monitoring card.
Safety
Comply with GB4943-2001, IEC62040-1 and CE requirements. Industry Standard :Comply with EN62040,YD/T 1095-2000 requirements. FOR 6K/10K/15K UPS products comply with:EN62040-1-1 (S afety). Conducted Emission: EN50091-2: Limits for UPS which have a rated output current exceeding 25A (25~100A)
Radiated Emission
EN50091-2: Limits for UPS which have a rated output current exceeding 25A (25~100A) EMSEN61000-4-2(ESD)..Level 4 EN61000-4-3(RS)........Level 3 EN61000-4-4(EFT).......Level 4 EN61000-4-5(Lightning Surge)........Level 4 EN61000-2-2 (Immunity to low frequency signal)
Standards
(220/230V-version) are Class A digital devices.
