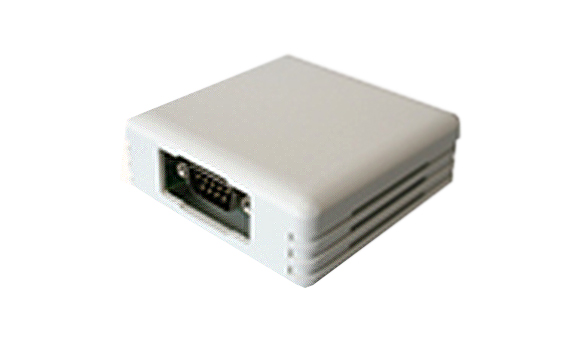

ENVIRONMENTAL SENSOR
Brief Introduction
In today commercial environment, rapid, prompt and long-range management is a necessary. With the trend of more intelligent network device, the connection between power usability and network usability become closer. Administrator can manage the network framework with more confidence. The network adapter card offer a standard 10/100M network connection, to realize monitor, configuration, and control and event management to the UPS based on industry standard. Safely network shutdown to the server system protected by UPS with Safemate series network shutdown software. The new module can be integrated onto one UPS smart card, while it offers UPS phone line distant management and environment monitor functions.
Application
For the measurement of ambient temperature and humidity in the communication operation centers, office, factory, workshop, storehouse, hospital, museum, air conditioner and residential auto control.
Benefit
Easy to use and cabinet in size. Immediately offers information of the environment and failure for the maintenance staff take actions accordingly
Fuction
Temperature and humidity sense module (can choose to have humidity module only or temperature module only) outputs linear voltage signal. It can be widely used in the places and industrial automatization fields such as power centers, air conditioners, communication base stations, Network operation centers, storehouses , textile field , agriculture field , tobacco field that calls for the monitoring and measurement of the environmental temperature and humidity.
Netmate II reserves a temperature and humidity monitoring port. The environmental temperature and humidity can be inquired by simply connecting the temperature and humidity module to the Netmate II connection port and the data will be displayed in the monitoring host computer in the monitor center.
Being informed with the temperature and the humidity of the monitored environment with the help of the IP Power series monitor software, it can save history data by setting time and set the alarm value. When the setted alarm is exceeded , IP Power monitor software will inform related personnel by voice broadcast , NT messenger, pop-up dialogue box , e-mail, BP call, telephone , SMS , helping maintenance personnel to be informed with the environment and the failure and taking action accordingly.
Features
1, Integrative digital temperature and humidity sensor. No need to verify. Cabinet size. Low power waste. Powerful anti-jamming function. Offer dew point parameters. Absolute humidity measurable, which is 100% under dew point.
2, Modbus RTU communication port, which can be easily compatible with other system port and convenient for extended use. Connect up to 100 devices by bus mode and supply each device an address which is set by DIP switch.
3, Interior watchdog to guarantee the stability of the running for the temperature and humidity module.
4, Green LED flashes when communication data is sending.
5, Red LED flashes when error occurs in the testing data.
Specification :
Ambient temperature testing range: -2 % ~ +85 %accuracy: +.5%
Temperature sensor testing range: -5 % ~ +155 % accuracy: +5%
Ambient humidity testing range: 10% ~ 99% accuracy: +3 %
Communication mode: Full duplex RS-485, with Modbus RTU communication protocol
Calculate the dew point through temperature and humidity.
Average time without fault: >50000 hours
Communication distance: radius 1200M
Machine power consumption: 1.5W
